Force measuring device set
FS 2-10KRY1
Product family: FS RY1
Ready-assembled set consisting of premium force gauge FS 2 and load cell CR 1000-1Y1 for tensile and compressive force measurements
Technical Data
| Measuring range force [Max] (N) | 10 kN |
| Readability force [d] (N) | 2 N |
| Measuring head measuring frequency | 1000 Hz |
| Number of platforms / channels | 2 |
| Supplied power supply | Accu & Power supply |
| Rechargeable battery | 3,7V, 2400mAh |
| Memory function | |
| Statistic function | |
| Peak function |
Your price
€ 1.380,00 *
*plus shipping costs (not applicable for downloads), plus VAT
Available on stock
Do you have questions?
We will be happy to consult you on our SAUTER measuring devices
Tel.: +49 7433 9933-562
Standard
Option
Description

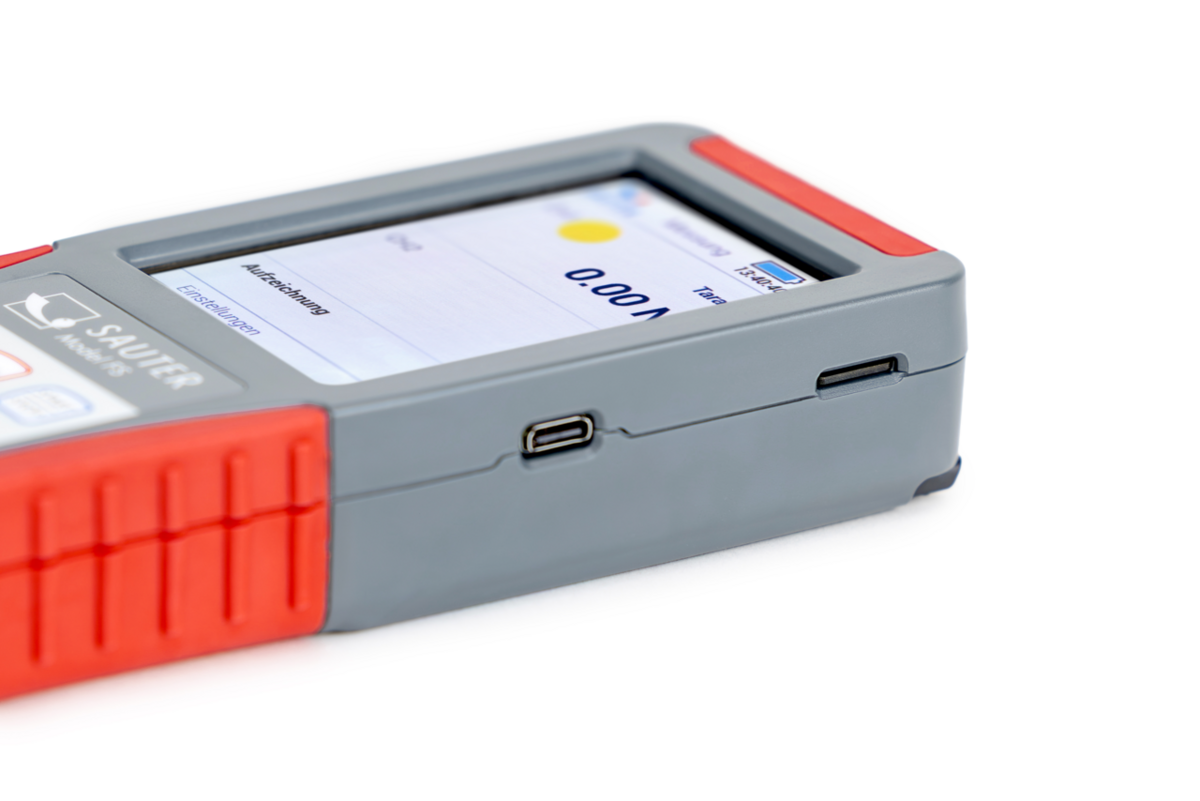

Premium force-measuring device FS 2
- Measurement of forces in different tensile or compression directions possible with only one measuring device
- 3,5" touchscreen with touch pen

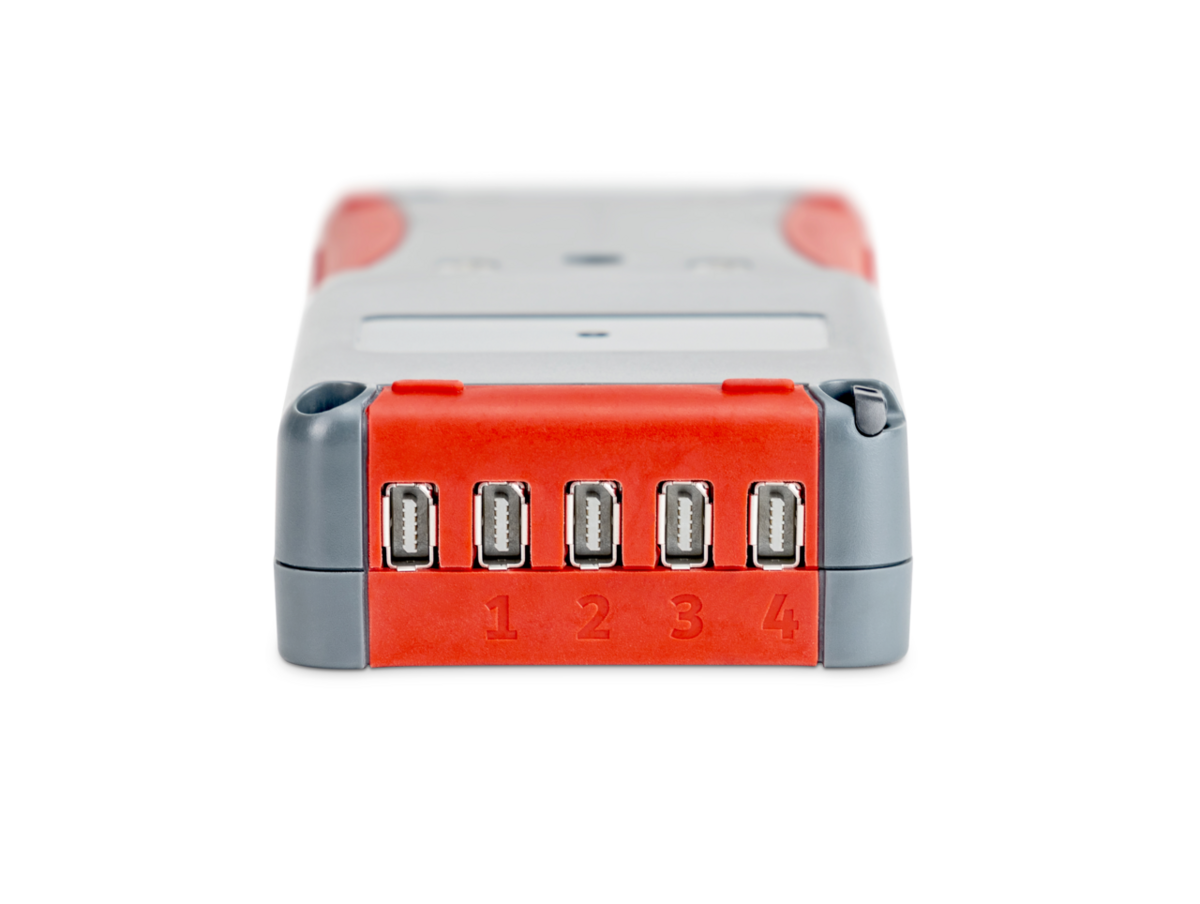

- Standard version with 2 measuring channels for external force sensors (subsequently expandable from 2 to 4)
- The specific data of an external sensor are stored directly in the connector
- Adjustable SI units: kg, N, kN, mN, MN, Nm, kNm, mNm
- Track function for continuous measurement display
- Peak value measurement
- Tolerance function
- Internal device memory (16 GB)
- USB interface for data transfer and power supply as standard
- Two-point adjustment with weights or numerical adjustment possible
- Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C
Loadcell made of steel alloy CR 1000-1Y1
- Accuracy class in accordance with OIML C1
- High precision (comprehensive Error 0,05% F.S.)
- Nominal sensitivity: 2 mV/V
- Protection against dust and water splashes IP68 (in accordance with EN 60529), hermetically encapsulated
- Area of application: for tensile and compressive force measurement
Technical Data
| Measuring range force [Max] (N) | 10 kN |
| Readability force [d] (N) | 2 N |
| Measuring head measuring frequency | 1000 Hz |
| Number of platforms / channels | 2 |
| Supplied power supply | Accu & Power supply |
| Rechargeable battery | 3,7V, 2400mAh |
| Memory function | |
| Statistic function | |
| Peak function | |
| Material housing | plastic |
| Net weight approx. | 2,0 kg |
| Interfaces | USB-Device |
| GTIN/EAN number | 4045761358409 |
